Portable Conveyors

PORTABLE CONVEYORS:
The Porta-Veyor

You can move up to 800 pounds over a 100 foot conveyor, anywhere! The Porta-Veyor is a reality. No more heavy steel units in fixed locations, no more need for power outlets every few feet, and no need for different conveyors to handle different products.

Load and unload your truck, trailers, and containers with a minimum of people and effort. With a maximum length of 125 feet and one drive unit, the Porta-Veyor can reach from your loading/unloading area to the furthest end of the truck, trailer, or container. The Porta-Veyor can handle a 20% up- or down-slope, so it is easy to adjust for the relative heights of both dock and vehicle. With 90 degrees turn-angle option available. Available in 10″, 12′ and 16′ wide belt. Can be lay flat or on legs. Section can be assembled quickly and removed for easy packing in the truck.

Portable Conveyor
Porta-Veyor in Nursery Operation

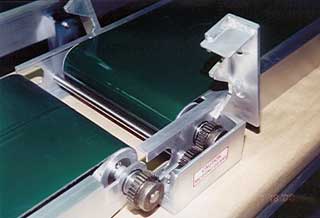

Easily add new sections to a conveyor
Easy-join gearing makes it fast and simple to
add or remove conveyor sections for
your application.

Capacity

  • 500 pounds continuous carry over 75 feet (Standard model)
  • 800 pounds continuous carry over 100 feet (Heavy Duty model)
  • 90 degrees right angle turns
  • 20% up- or down-slope

Physical Specifications

  • Each section is 12.5 feet (3.8 meters) long
  • 10 inch, 12 or 16 inch belt width
  • 1.5 HP motor available upon request
  • Drive section weighs 125 pounds (57 kg)
  • Extension sections weigh 55 pounds (25 kg)
  • Adjustable height legs
  • Stackable for easy storage

Drive Specifications

  • Single drive motor at one end for up to 100 feet (30.5 m) of conveyor
  • 100 VAC or 220 VAC motors
  • Electric power from electric circuit or portable generator
  • Reversible
  • Variable speed

Options

  • Side Rails
  • Monopods
  • Storage cart
  • Leg extensions
  • Right angle connections
  • Flow-stop switch
  • Counter (electric eye)
  • Portable generator
  • Drive section mobility unit
  • U.H.M.W. wear strip for each conveyor section

Applications and Industries

  • Trucking/Shipping
  • Loading/Unloading applications
  • Warehousing (wholesale and retail)
  • Product Handling
  • Catering/Assembly line maintenance
  • Conveyor Maintenance
  • Nurseries/Greenhouses
  • Emergency services equipment delivery
  • Disaster relief kit preparation
  • Flood prevention; sandbag delivery
  • Facility Management System
  • Baggage handling
  • Shelf restocking

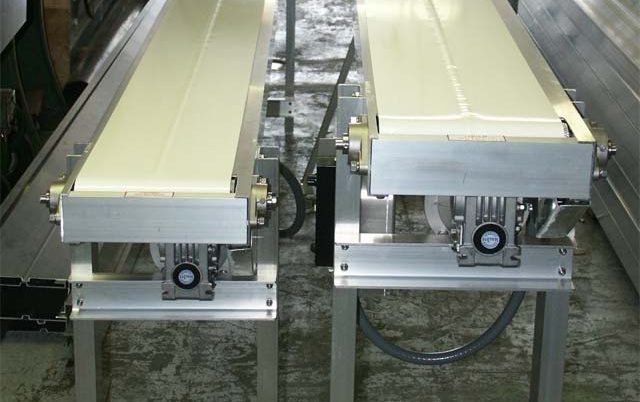

10, 12 and 16 wide belts available
10″, 12″ and 16″ inch belt option
90 degrees angle available
90 degrees turn angle as an option
Stackable conveyors for easy set-up
Save time and money with Porta-veyors
Warehouse Portable Conveyors
Portable and assembles in minutes
portable conveyors from greenhouse to loading truck
Nursery plants loading from greenhouse to truck
Porta-veyor saving time and money
800 lbs. capacity, ideal for large gallons pots
navigate_before
navigate_next

A Very Good Product. Great Labor Savings. Lightweight. Moveable. The Standard all other Conveyors Try to Attain. Useful as greenhouse conveyors, product conveyors, nursery conveyors and especially useful because the Porta-Veyor is portable! If you are looking for portable conveyors, visit our portable conveyor web site for full details, or contact us for in-depth Information.
