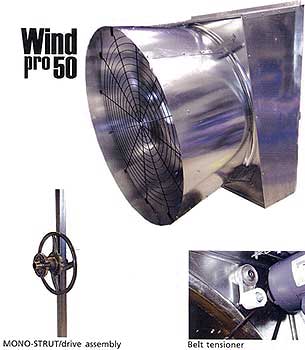

Wind Pro Fan : New!
High Quality, Lowest Cost 50″ Fan
USGR offers a wide variety of exhaust fans for many industries,
engineered, designed and priced to meet all climates of the world.
The Wind Pro 50″ fan uses high quality components and precise engineering to create a simple, high quality fan with optimal performance at the best price ever offered. All backed by the service and support that has made Aerotech the ventilation leader for over 55 years.
Features
- Cast aluminum drive assembly utilizes enclosed automotive style bearing and comes with a 7 year limited warranty.
- Automotive style belt tensioner promotes top performance.
- Corrosion resistant stainless steel propeller, durable enough to withstand harsh environments.
- Fan housing features formed galvanized steel perimeter for added strength, rigidity and wide flange for easy installation.
- Single or 3 phase high efficiency motor.
- Option of plastic or aluminum shutter.
- The MONO-STRUT offers strength and durability in a simple design.
| Performance information: 50″ Belt drive fan complete with discharge cone, guard and inlet | |||||||||||||
| 0.0″ SP | 0.05″ SP | 0.10″ SP | 0.15″ SP | BESS Lab
Test No. |
|||||||||
| Catalog No. |
Shutter Material |
Motor HP |
Prop RPM |
Max BHP |
CFM | CFM Watt |
CFM | CFM Watt |
CFM | CFM Watt |
CFM | CFM Watt |
|
| WF501TCP | Plastic | 1 | 500 | 1.27 | 25,400 | 25.1 | 23,900 | 22.5 | 22,400 | 20.1 | 20,400 | 17.5 | 03148 |
| WF501TCY | Aluminum | 1 | 500 | 1.27 | 25,300 | 24.5 | 23,900 | 22.1 | 22,400 | 19.8 | 20,700 | 17.7 | 03149 |
| WF5015TCP | Plastic | 1.5 | 580 | 1.74 | 28,000 | 19.6 | 27,000 | 18.0 | 25,800 | 16.4 | 24,400 | 14.9 | 03151 |
| WF5015TCY | Aluminum | 1.5 | 585 | 1.80 | 28,100 | 18.6 | 27,100 | 17.1 | 25,800 | 15.6 | 24,500 | 14.3 | 03150 |
Notes:
- The ratings shown are based on tests and procedures performed at the BESS Lab, University of Illinois in accordance with ASHRAE Standard 51-1999.
- BHP values were not measured at the BESS Lab. The BHP values shown were derived from actual Watt measurements using motor efficiency values supplied by the motor manufacturers.
