Under Bench Fin Tube
Heating System
The DELTA-FIN™ aluminum under bench heating system heats the greenhouse using water temperatures up to 230°F. This system works by heating the air around the fin tube and distributing heat through natural convection and radiation through the plants.
The versatility of the materials allows the grower to place the heat where it is needed, at the plant level. By placing high grade aluminum under or around the crop to be heated, the tubing, warm from the water running through it, radiates heat to the soil, roots and foliage of the crop.
Because of the superior transfer capabilities of the DELTA FIN™ TF, even temperatures are maintained throughout the system and the growing media. The end result is an envelope of warmth around the entire crop which you, the grower, control.
Two sizes allow for various design considerations:

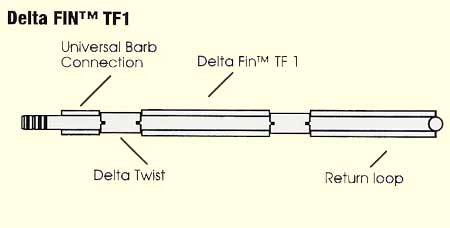

- TF1 Two fin aluminum material with 3/8″ fins is ideal for climates that have low heat requirements or need closer temperature control like plug production.

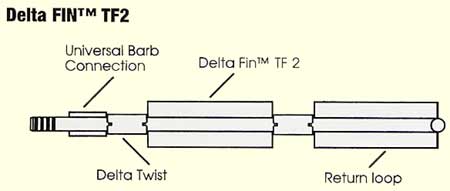

- TF2 Two fin aluminum material with 1″ fins has the added surface area for more heat transfer for higher heat requirements.
External coupling design enables unrestricted water flow through the system allowing for longer runs and more even heat. No low flow high
flow conditions inherent of an internal coupler.
Some of the many advantages of the DELTA FIN™ TF systems are:
- Lightweight aluminum construction allows for hanging material from benches without special support.
- Rugged construction can be supported on 12 foot OC Hangers.
- External coupling technology for easy installation.
- Requires NO special tools for installation.
- Does not restrict flows like internal couplers.
- Does NOT require Tek screws to hold material together.
- All aluminum return loops make installation ridged. No rubber hose required for loops.
- Special barb connection to mainlines using a minimal hose connection.
- Low water volume allows for quick response time.
Delta T Solutions can provide a performance engineered heating system that can meet the needs of any grower. Performance packages include:
Heating system components (heat source, controls, radiation), performance engineered drawings (pipe layouts and electrical diagrams), installation
supervision, installation (as required).
Contact your usgr@usgr or call +1-888-334-1440 for additional details.
Specifications:
The radiating material shall be the following components offered by US GLOBAL RESOURCES
- The Delta-Fin TF1 (3/8″ fin) and TF2 ( 1″ fin) are 7/8″ OD aluminum tube with two integral fins that run parallel
to the tube. Each fin tube length has each end prepared to accept the DeltaTwist Coupler provided. - Each return loop are Delta-Fin TF1 or TF2 bent to size based on required spacing.
- Connection to the main lines is a special barb connection made of the 7/8″ TF1 material (special bends and lengths are available).
- Coupling is a external slip on compression style with two high temperature “O” rings rated for -60°F to 230°F. (Maximum pressure rating – 100PS1 at 230°F) Coupler patent pending.
- Material is supported from a bench frame using 16 inch “S” hooks that support the fin tube without drilling holes through the fin.
Hot Water Ratings BTU/HR/FT | ||||||||||||
Tube Size & Material | 130°F | 140°F | 150°F | 160°F | 170°F | 180°F | 190°F | 200°F | 210°F | 220°F | 230°F | 240°F |
TF1 | 50 | 60 | 75 | 85 | 95 | 105 | 115 | 125 | 140 | 155 | – | – |
TF2 | 75 | 85 | 105 | 120 | 135 | 150 | 165 | 180 | 200 | 220 | – | – |
Maximum water velocity 4.0 ft/sec
Maximum water pressure – 100 PSI at 230°F
All material is shipped in 20 foot lengths with each end ready for coupling. Special lengths available upon request.
Check out our SF-Aluminum High Output Finned Tube
