W-Truss Shade Structure

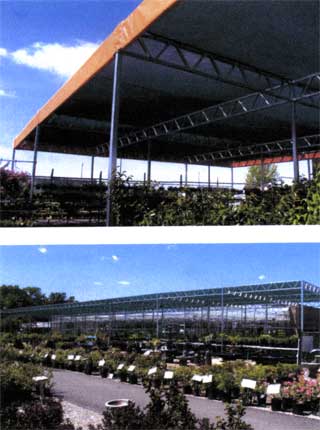

Our W-Truss not only provides you with the required benefits of a shade structure—customer comfort, reduced watering, and product protection—but it does so with an elegance and style your customers will notice; and our peaked roof option (available in 3 pitch choices) offers even more visual appeal.

However, the W-Truss is more than just a pretty face. It’s also one of the strongest shade structures in the industry! Utilizing heavy-duty, 3″ square, 12 gauge galvanized posts, the W-Truss is definitely built to last, and we can configure this structure to meet your individual layout needs. You’ll benefit from our “form-meets-function” approach, and the result will be increased sales. Find out today how the W-Truss can make a difference in your business.

SPECIFICATIONS

Standard W-Truss

Width/Lengths: 20′ x 20′ blocks standard, custom trusses available
Anchors: concrete anchor bolts
Vertical posts: 3″ x 3″ x 13′ galvanized steel with base plate
Truss: 2″ x 2″ square top and bottom chords, galvanized webbing
Cover: 30-90% shade cloth

Peaked W-Truss

Width/Lengths: 20′ x 20′ blocks standard, also available in 14′, 16′, & 18′ widths
Roof Pitch: 5/12 roof pitch standard. 3/12 and 7/12 available
Anchors: concrete anchor bolts
Vertical posts: 3″ x 3″ x 13′ galvanized steel with base plate
Truss: 2″ x 2″ square top and bottom chords, galvanized webbing
Cover: 30-90% shade cloth

SIZES and PACKAGES

Price depends upon post spacing which varies in width and length. It is also based upon type of roof pitch and flat roof covering.

A variety of package options are available, including different shade material, different colors, light transmission percentages and woven or knitted materials.

An example of the standard packages is as follows:

W-Truss Size

Peaked W-1 Size

20′ x 20′
20′ x 40′
40′ x 40′
40′ x 60′
60′ x 60′
60′ x 80′

W-Truss standard packages include:

3″ x 3″ Sq. 12 ga. vertical posts with 8″ x 8″ base plates in 20′ x 20′ blocks, Hilti expansion anchor bolts, 20′ galvanized truss members, 60% black knitted shade cloth with taped edges and grommets, 10″ canopy ball bungee every 18″, fittings, hardware, and
assembly instructions. Kit prices based on 20′ x 40′ or larger shade cloth panel sizes. Smaller panel sizes will result in higher prices.

20 x 20′
20′ x 40′
40′ x 40′
40′ x 60′
60′ x 60′
60′ x 80”

Peaked W-truss standard packages include:

3″ x 3″ Sq. 12 ga. vertical posts with 8″ x 8″ base plates in 20′ x 20′ blocks, Hilti expansion anchor bolts, 20′ galvanized truss members (5/12 roof pitch), 60% black knitted shade cloth with taped edges and grommets, 10″ canopy ball bungee every 18″, fittings, hardware, and assembly instructions. Kit prices based on 20′ x 40′ or larger shade cloth panel sizes. Smaller panel sizes will result in higher prices.

Options

Layout Assistance: We can design a shade structure that accommodates your specific location needs
Post Basket Hanger:
Soften structural lines and showcase your hanging baskets.
Post Hanging Shelf:
Soften structural lines and cross merchandise your products
