OUR CHERRY CREEK BASKET IRRIGATION SYSTEM

THE ECHO® SYSTEM

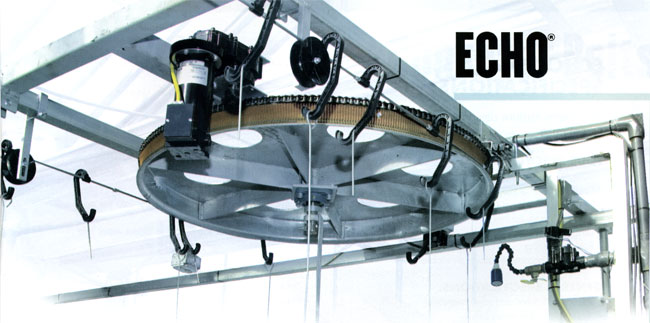

ECHO automated basked irrigation system

The ECHO® System is the industry’s most widely accepted automated basket irrigation system. For more than 20 years, the ECHO® System has been increasing watering efficiency and plant production in all types and sizes of greenhouses while significantly lowering labor costs.

The ECHO® System allows for accurate measurement of water to each basket. Fertilizer application can be consistently controlled, resulting in faster production times, higher yields, and more crop turns per season.

The gentle movement of the plants as they go through the watering mode allows them to experience various lighting exposures and air movement over the surface, thus promoting healthier growth. In addition, the plants are watered at a position that does not interfere with the crops below. Your ECHO® hanging basket irrigator leaves the factory fully assembled, making installation fast and simple.

ECHO® SYSTEMS
SPECIFICATIONS

All systems custom designed for your greenhouse.

YOUR SPECIFICATIONS

  • Choice of 30″ or 40″ diameter drive and idler drums
  • Number of layers: 1,2 or 3 available
  • Extension Hanger length: 20″ standard or custom
  • Length of systems
  • Basket spacing
  • Heat pipe accommodations available

GENERAL SPECIFICATIONS

  • Assembled drive and idle assemblies
  • Assembled axle assemblies
  • Sealed bearing on drive, idle and axle assemblies
  • Allows watering station location to be anywhere
  • ECHO® tightening assemblies (2′ Acme thread)
  • Plant sensing photo cells for watering upper and lower
  • DC 1/4 hp motor for variable speed
  • Programmable controller
  • Irrigation assembly with adjustable lockline or copper tubing
  • All parts are hot dipped galvanized
  • Aluminum stops for plant spacing (customer specified length)
  • UV-resistant heavy duty plastic hooks
  • 1/4″ galvanized aircraft cable
  • 3/4″ solenoid valves
  • Shade curtain friendly (everything is mounted under the curtain)
  • Shipped fully assembled

UPGRADES AND OPTIONS:

We can upgrade, change or customize your boom

Amniod Filter Assembly

  • Recommended to reduce the chance of solenoid blockage

Watering Funnels

  • Funnels are used to direct the water into the pot below the foliage
  • Uses a hose under the funnel to direct water into the soil

Lockline

  • Takes the place of the copper tubing
  • Flexible tubing for ease of adjustability

Motors

  • We offer the DC motor on our standard system and we also offer the old AC motor

Extension Hangers

  • Extension hangers can be made in custom lengths for your needs

Pot Hangers

  • Custom pot hangers to your desired length and pot size

OUR CHERRY CREEK BRAND IS IDEAL FOR PLUGS AND ROOTING
SYSTEMS FOR OUTDOORS AND INDOORS.
