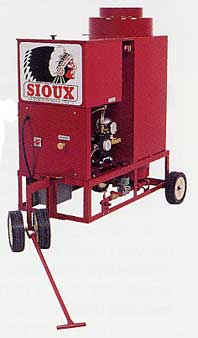

sioux-water-pressure-washers Sioux Water Pressure Washers Sioux Water Pressure Cleaners Different Machines for different Applications… What Type of Cleaner is Best for You? Cold Pressure Washers Sioux cold pressure washers are excellent for lighter cleaning jobs such as washing off dirt, dust and mud, and maintaining vehicles and grounds. Cold pressure washers are easy units to operate, since water is not heated, therefore there are fewer components, and less maintenance, The initial cost and operating expense of cold pressure washers is less than most other cleaning methods. Units come complete with pressure relief valve and glycerin felled pressure gauge. Ratings: 2 – 24 GPM 500 – 6000 PSI Electric Motor, Gasoline Engine or Diesel Engine Hot Pressure Washers Sioux high-pressure hot water washers are excellent for removing oil and grease, dried-on mud. thick dirt, sludge, paraffin, and for cleaning walls, floors and vehicles. Hot pressure washers greatly increase the power of cleaning compounds, compared to cold pressure washers. Units come complete with high temperature limit switch, glycerin-filled pressure gauge and pressure relief valve. A steam option, which produces 290-300°F saturated steam (212°F after discharge from gun nozzle), is available on all fuel-fired hot pressure washers. Ratings: 2 – 6 GPM @ 200°F 500 – 3000 PSI 145,000 – 425,000 output BTU/Hour Steam Cleaners Sioux steam cleaners provide 325-F saturated steam (212-F after discharge from gun nozzle) at 100 PSI to remove grease and oil, sterilize, disinfect, and degas. Steam is great for cleaning surfaces before painting or other treatments, flushing away poisons and chemicals, dissolving resins and tars, killing algae and mildew, melting ice, and thawing frozen valves and pipes. Units come complete with high temperature limit switch, glycerin-filled pressure gauge and pressure relief valve. Ratings: 1.6 – 8 GPM @ 100 PSI @ 325°F 234,000 – 1,125,000 output BTU/Hour Combination Cleaners Sioux combination cleaners combine a cold pressure washer, hot pressure washer and steam cleaner all in one unit. A combination cleaner is ideal if several types of cleaning are required. Sioux combination cleaners provide 325-F saturated steam (212-F after discharge from gun nozzle) at 100 PSI on steam cleaning cycle, hot water at 200-F on hot pressure cycle, and cold water on cold pressure cycle. Units come complete with high temperature limit switch, glycerin-filled pressure gauge and pressure relief valve. Ratings: Steam Cycle: 1 – 8 GPM @ 100 PSI Pressure Wash Cycle: 2 – 16 GPM C 200°F 250 – 2000 PSI 145,000 – 1,125,000 output BTU/Hour All-Electric Cleaners Sioux All-Electric Units provide similar cleaning power to conventional Sioux units, but are 100% electric. All-Electric cleaners are ideal for applications in which no flame, exhaust or contamination can be tolerated. Sioux’s entire line of All-Electric units are ETL listed, providing third-party certification to UL-1776, and the Canadian Standards Association CSA C-22.2 No. 68-92. All models can be built to explosion-proof specifications. Sioux’s All-Electric equipment meets the U.S. and Canadian National Electric Codes and complies with OSHA Regulation 1910.303(a). Ratings: Steam Cleaners: .6 – 3.8 GPM Q 100 PSI o 325-F Saturated Steam Hot Pressure Washers: 1.6 – 5.7 GPM Q 140 or 180-F o 600 – 3000 PSI Combination Units: Steam Cycle: .6 – 1.9 GPM [email protected] 100 PSI o 325-F Saturated Steam Pressure Cycle: 1.6 – 5.7 GPM Q 140 or 180-F 9 600 – 1200 PSI Accessories Available to Customize Your Cleaner The following accessories can be ordered on any Sioux All-Electric cleaner,unless otherwise specified. Trailers – For any unit, balance and weft permitting – Factory installation. SA-25a Mini Trailer-2-wheel. Holds up to 1,000 lbs. SA-25b Trailer-2-wheel. Holds up to 2,000 lbs. SA-26a Trailer-4-wheel tandem with 15″ wheels. Holds up to 5,000 lbs. SA-26b Trailer-4-wheel, steerable. Holds up to 10,000 lbs. Water Tanks – For any skid or trailer – mounted unit. Factory Installation. SA-27 Water Tank-Carbon steel. SA-27a Water Tank-Stainless steel. SA-27b Water Tank-Polyethylene plastic. Hose and Hose Accessories SA-32c Hose-3/8″ x 50′ single wire-braid. For use on steam cycle rated to 60 GPH, and high pressure rated to 2,000 PSI. SA-32f Hose-3/8″ x 50′ 2-wire braid. For 3,000 PSI high pressure washers, 120-360 GPH. SA-32g Hose-3/8″ x 25′ single wire-braid. For steam cleaners and combination units, 40-60 GPH. SA-33 Hose-1/2″ x 25′ single wire-braid. For all steam cleaners, or any combination cleaner 80 GPH or higher. SA-31 Hose-1/2″ x 50′ single wire-braid. For all steam cleaners, or any combination cleaner 80 GPH or higher. SA-46 Brass 50- Fan Nozzle. For all steam cleaners and combination units. SA-50b Quick Coupler-3/8″. For any 3/8″ hose. SA-50c Quick Coupler-1/2″. For any 1/2″ hose. SA-54a Hose Reel-Manual crank rewind. SA-54b Hose Reel-Spring rewind. SA-54c Hose Reel-Motor-driven rewind. Optional Accessories SA-76 Shut-Off Gun-For All-Electric steam cleaners and combination units. SA-43b Downstream Chemical Injection – Injects chemicals downstream of pump and heating system. Use on hot pressure washers. Factory installation. SA-52a Alternate Electricals – Electrical voltage and frequency other than listed standards. Consult factory. Factory installation. SA-53 Time Delay – Delays shutdown of water pump to cool heating element. Factory installation. SA-55 Sand Grit Injector-Hopper or spade pickup. Use on pressure washers 1,000 PSI and 180 GPH or higher. SA-56 Wheels-4″ x 16″ with semi-pneumatic tires. Factory installation. SA-56b Wheels-4″ x 10″ with fully-pneumatic tires. Factory installation. SA-59 Hour Meter – Records operating time. Electrically operated. Factory installation. SA-69 Machine Disconnect Switch – Factory installation. SA-70 Internal Circuit Breakers (in place of standard fuses)-Factory installation. Sioux All – Electric Cleaners Designed for Safety, Reliability, Durability Third-party certified for safety, meeting UL and CSA standards. Ideal for areas where no flame, exhaust or contamination can be tolerated. Available in explosion-proof models for use in hazardous areas. Hot water is available fast and continuously. Heavy-duty construction and quality craftsmanship gives years of trouble-free cleaning. Easy to operate and easy to service. Which is Best… a Hot Water Washer OR a Steam Cleaner? Myth: Steam cleaners are outdated. Reality: There are many applications where a steam cleaner may be better than a hot water washer. At Sioux, we have been building both types of machines for many years. There are some advantages to using hot water washers and some advantages to using steam cleaners. Each cleans in a different way. Determining which machine is best depends on the application. With pressure washers, dirt and grime is blasted away, under pressure. Heat will improve the result if melting is required, and use of the proper detergent will enhance cleaning. Steam cleaners are best when the substance to be removed turns from a solid to a liquid, or dissolves, with the application of heat. This is the case with grease, oil, tar, many petrochemicals, ice, wax, food products and similar materials. The substance is melted or dissolved, rather than pushed off of the surface. Use of proper detergent will enhance steam cleaning. With a Dakota™ Series steam cleaner, when heated water at a temperature of 320°F and a pressure of 250 PSI flashes into vapor as it passes through the steam nozzle, there is tremendous expansion, producing about the same impact as a 1,000 PSI pressure washer, with 86% more heat transferred for cleaning. If heat is what is really needed for cleaning, a steam cleaner is the better choice. In addition, a steam cleaner (vs, a hot water washer) offers the following benefits: Operates with less power consumption, reducing your electric bill, Requires a smaller electric circuit for installation, and therefore may be used in more locations in your facility, Uses less water during operation, reducing your water and sewer bills, and reducing the volume of wastewater to be processed, Produces less splattering and splash-back onto the operator and in your facility. All steam cleaners are not the same. At comparable flow rates, a 320-F steam cleaner produces approximately 40% more steam and will transfer approximately 13% more heat to the surface than the 290-F steam cleaner. The increased heat and steam also significantly increase the cleaning impact, as illustrated in the chart below: Pressurized Water Temperature Before Exiting Nozzle as Steam % Increase in Cleaning Impact of 320°F vs. Lower Temperatures 320°F vs. 300°F +34% 320°F vs. 290°F +58% 320°F vs. 280°F +118% 320°F vs. 265°F +167% 320°F vs.250°F +338% What is more important, pressure or flow? For a given cleaning application there are many flow/pressure combinations from which to choose. Here are some criteria you can use to select the best flow and pressure combination for your application. Consider the capacity of your water source. If you have a limited water supply then you should probably choose more pressure than flow. Consider how important heat is in your cleaning application. It heat is critical to your cleaning application, then higher flow is better. The more hot water you can move across the surface, the faster you can heat it and clean it. If additional heat would help, a steam cleaner should be considered. For a given horsepower there may be several flow and pressure combinations available. Higher flow and lower pressure for a given horsepower will result in more impact and more work. The example below compares two different 7.5 hp machines. You can see that the higher flow rate option results in 29% more work and 40% more cleaning force. Example Rating % Additional Work % Additional Force High Pressure 3.5 GPM @ 3000 PSI – – High Flow 5.3 GPM at 2000 PSI 29% 40% It is commonly believed that lower flow and higher pressure will produce less runoff, and less wastewater to process. This may be true in some applications. But if a higher flow machine can perform the same job faster, then the total amount of water used may be less. Temperature should also be considered to reduce water consumption. It may be better to use a higher temperature rather than increase flow or pressure in order to minimize your wastewater. Dakota™ Series Steam Cleaners and Pressure Washers Designed for Safety, Performance, Dependability, and Value Third-party certified to UL-1776 and CAN/CSA-B140.11-M89 by ETL Meets National Electric Code and Canadian Electric Code Gas fired machines meet requirements of American Gas Association and Canadian Gas Association Performance Certified to Cleaning Equipment Trade Association Performance Standards Designed for easy maintenance and operation Efficient coil design lowers fuel usage. Saves you money. Sioux Trailers for Mobile Cleaning Any Sioux Cleaner can be mounted on our heavy-duty trailers. All trailers are constructed of 11-gauge rectangular steel tubing and heavy duty angle iron. Sioux Trailers are ready to use and are available with a variety of accessories. Because most trailers are individually built to the needs of the cleaner, the exact specifications and accessories may vary. “Over-the-Road” trailers include wiring harness, leveling jack, reflectors, turn signals, break-away safety chains and either ball hitch or lunette eye. If unit has an exhaust hood, rain cover will also be furnished. Self-contained units are available by adding special options such as water tanks, engines, generators and hose reels. Sioux trailers can be customized to meet your requirements. 2-WHEEL TRAILERS 2-Wheel Mini-Trailer Capacity: 1,000 lbs. Approximate Trailer Weight: 225 lbs “Over-the-Road” SA-25a Mini-Trailer- Features wiring harness, leveling jack, rain cover on exhaust hood, breakaway safety chains, ball hitch, reflectors, turn signals, and easy access to controls. Trailer is complete and ready to use “Over-the-Road.” Leaf spring suspension with 16.5 x 6.5 – 8 tires. Tongue can be removed to decrease required storage space. Length (Including Tongue) 82″ Width 71″ Height 24″ Tongue Length 30″ Trailer Weight, approximate 225 lbs Load Capacity 1,000 IBS 2-Wheel Standard Trailer Capacity: 2,000 Ibs. Approximate Trailer Weight: 350 IBS “Over-the-Road” SA-25b 2-Wheel nailer- Features 15″ 4-ply tubeless radial tires, semi-elliptical leaf springs, complete wiring harness with reflectors for “Over-the-Road” use, easy access to controls, rain cover on exhaust hood, leveling jack; ball hitch and breakaway safety chains, ready to use. Tongue can be removed to decrease required storage space. Length (Including Tongue) 90″ Width 72″ Height 33″ Tongue Length 36″ Trailer Weight, approx 350 IBS Load Capacity 2,000 IBS We are referring to the Siebring Pressure Washer. For those requiring smaller units, lower capacity, economical grade.
