PT-30 GREENHOUSE

PT30 greenhouse

Purchasing a growing structure is a big investment. That’s why it’s nice when you can utilize your asset in multiple ways. Our PT-30 is a great cold frame, but it’s also heavy-duty enough to be used as a year-round growing structure—that’s twice as nice, but why stop there? For an added cost you can request a 2′ side extension and turn your PT-30 into a high tunnel. It’s once, twice, three times the structure with the PT-30.

SPECIFICATIONS

  • PT30 consturction is strongerWidth: 30′
  • Length: Starting at 24′ with increments of 4′ or 6′
  • Sidewall Height: 24″ sidewall extension (optional)
  • Frame Spacing: 4′ or 6′
  • Peak Height: 10′-4″
  • Truss Height: Approx. 8′
  • Frame: 2″ O.D. 14 ga. galvanized steel
  • Purlins: (2) runs of 1.163″ O.D. 17 ga. and (1) run of 1.315″ O.D. 17 ga. (peak) galvanized steel

Frame only price includes: three-piece bows, diagonal wind braces, ground stakes, assembly hardware, (3) purlin runs and set up manual. (End frame verticals are not included)

Standard package price includes: three-piece bows, diagonal wind braces, ground stakes, assembly hardware, (3) purlin runs and set up manual, three-part truss on every intermediate frame section, roll-form end frame (packages), roll-form side rails, (2) full-ledoor manual roll-up sidewall vents, Wiggle Wire poly fastening system, single layer clear poly roof and ends, double swinging end doors (one end).

OPTIONS

  1. Ventilation: Our 12″ HAF fans reduce condensation and improve circulation for improved plant health
  2. Increased Strength: Truss Kit bolts on to frame-only PT-30 intermediate frame sections for increased durability
  3. End Door Options: Choose from 6′ x 6′ 8″ double swinging, or sliding door packages, or opt for 3′ x 6-8″ single swinging door package
  4. End Frame Finishing: Heavy-duty, galvanized steel and ready for poly. 10 door opening door opening V door opening (door not included)
  5. Side Wall Vents Available: Roll-up sidewall vents with self-locking gear box, ensure natural, simple, and effective ventilation

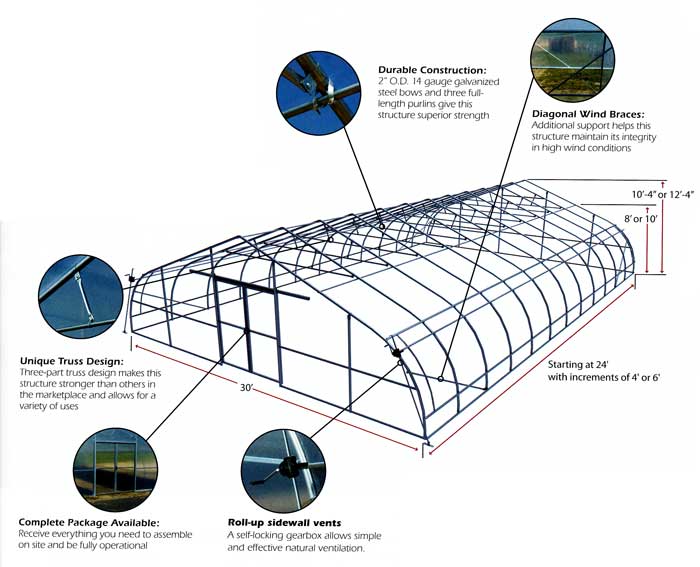

PT30 greenhouse blueprint
