INCINERATORS AND CREMATORIES
USGR offers the finest but affordable incinerators for various establishments. These incinerators are EPA tested and NRCS approved. Our incinerators are all available with secondary chamber for those areas that requires it and can be installed inside or outside. They are also compatible to use with Natural Gas, Propane or Diesel Oil fuel.
Various Applications:
- Poultry
- Swine and large animal
- Bovine
- Disposal of animal carcasses for meat processing
- Veterinarian animal crematorium
- Road kills
- Disposal of dead/disease animals
- Fish and Wildlife incineration for State Parks
- Waste incinerators for all types of product
- Drugs and narcotics incineration
- Marijuana/Cannabis Waste Disposal
- Pet crematory
- Hotel and resort waste disposal
Destructor JR
The Destructor Junior requires only a 5′ x 5′ area for operation to handle 80 to 100 pounds per hour. A weather-proof electrical control box means that the Destructor Junior can be installed indoors or out. One re-adjustable gas burner with a 60-minute timer. Natural, Propane or Diesel oil may be used. In testing, it is estimated that it uses 1/2 gallon of propane per hour. Available with secondary chamber.
Specifications
Height: 7’10″ Length: 4′ Width: 3′
Weight: 2,250 lbs
Charge Door: 14.5″ x 24″ .
Ash Door: 4″ x 6″
Grates: 1/2″ x 2″ x 20″
Burners: 100,000 BTU incinimite with cover.
Second burner available upon requests
Two Timers: 60 minute
TC 275 INCINERATOR
The TC 275 is the incinerator that sets the standard for efficiency. Designed with limited space in mind the TC 275 requires only a 10′ x 10′ area for operation to handle up to a 275 pound capacity. A weatherproof electrical control box means that the TC 275 can be installed indoors or out. Natural Gas, Propane or Diesel Fuel may be used. Secondary Chamber available.
Specifications
• Height: 7’10″ Length: 5’8” Width: 4’1”
• Weight: 3,200 lbs.
• Charge Door: 14.5″ x 24”
• Sparkscreen: 6″ Stainless Steel 2″ refractory lining
• Ash Door: 4″ x 6″ Lining: 4″ 3000° refractory
• Grates: 1/2″ x 2″ x 20″
• Burners: 100,000 BTU incinimite with cover.
• Timer: 6 hour
DESTRUCTOR INCINERATOR
Destructor requires can handle up to 500 pound capacity with burn rate of 125 pounds per hour. Estimated fuel use of 1.5 to 2 gallons per hour makes this unit very fuel and energy efficient. One re-adjustable gas burner with a preset burn cycle time and a thermocouple installation conserves fuel. Natural or propane fuel may be used. Available with secondary chamber.
Specifications
• Height: 8’4″ • Length: 6′ • Width: 4′ • Weight: 6,000 lbs
• Metal: 11 gauge • Lining: 5-inch 3000° refractory
• Poultry Charge Door: 17″ x 24″ • Lining: 4″ 3,000° refractory.
• Swine Charge Door: 17″ x 36″ • Lining: 4″ 3,000° refractory
• Second Chamber: 4′-4″ • Lining: 2-inch refractory lining
• Ash Door: 6″ x 11″ (both ends) • Lining: 2-inch 3000° refractory
• Grates: 30″ x 8″ (6 grates pr unit)
• Burners: 300,000 BTU incinimite burner with cover
• Clean-out Rod: 60″ long • Timer: 6 hour
HD 500 INCINERATOR
HD500 has 500 pounds capacity with burn rate of 150 pounds per hour. Two re-adjustable gas burner with a preset burn cycle time and a thermocouple installation conserves fuel and makes the HD 500 very energy-efficient. Estimated fuel use of 3 gallons per hour makes this unit very fuel and energy efficient. Natural or propane fuel may be used. Available with secondary chamber.
Specifications
• Height: 8’4” (11’1″ w/ Secondary Chamber Length: 7′ Width: 4′
• Weight: 5,000 lbs (6,000 lbs with secondary chamber)
• Metal: 11 gauge. Lining: 3” walls, 4” ends 3000° refractory
• Swine Charge Door: 4’4” x 20” Lining: 4” 3,000° refractory
• Stack: 4’4” Lining: 2-inch refractory lining
• Ash Door: 6″ x 11″ (both ends) Lining: 2-inch 3000° refractory
• Grates: No grates
• Burners: 2 300,000 BTU incriminate with cover. 50,000 BTU Second Chamber burner with cover.
• Comes with clean-out rod. Two Timers: 6 hour
HIGH CAPACITY STAINLESS-STEEL INCINERATORS

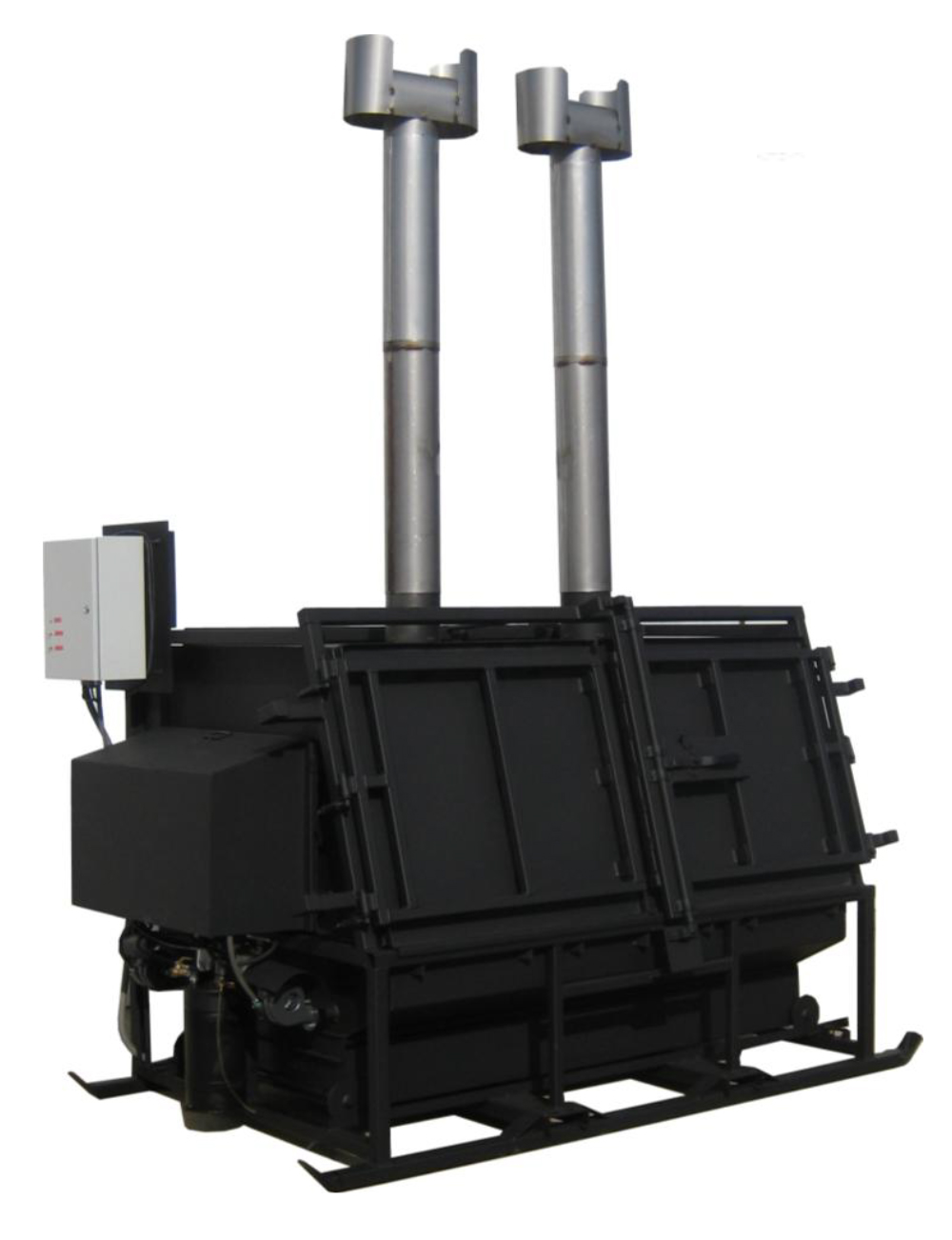

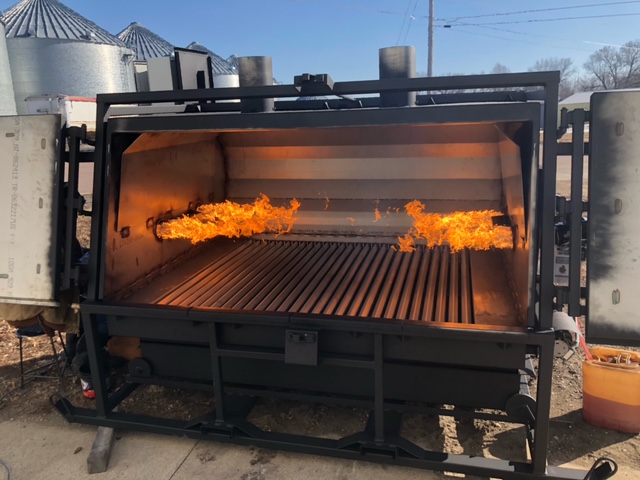

Model 8460-4
Model 7248-2
Model 6045FL
Model 6045CS
These units have been used for disposal of a variety of types of garbage. The length of time to burn and volume depends upon how compact the waste products and moisture content. Waste disposal is easy and extremely efficient. Because of the mobility of the unit it can go directly to the location of the waste. Our incinerators are often required by local laws to be used in growing poultry, swine and other animals.
These high-heat stainless steel animal incinerators can handle up to 1,200 pounds capacity with burn rate of up to 400 pounds per hour depending on the unit and the density of the waste. They can be used with #2 diesel oil fuel. All models has 10 Gauge 309 stainless steel body and 11 gauge 2″X2″ square tube frame, a stainless steel chamber, grates, chimney and stainless steel down draft draft. All waste products are reduced to clean, dry ash which can be easily removed from the drawer style ash tray and disposed.
All models are factory tested, delivery ready to hook up and operate. Extremely easy to maintain. For animal disease incineration we offer the following: Bird flu, H5N1 avian flu, and SARS are but a few of the diseases that must be coped with on a daily basis. Disposal of infected carcasses is a mounting problem.
IMPORTANT NOTE: The unit does not burn heavy metal, as these are special units that require temperatures over 2,000 to 2,200 F. They have been used by hospitals, but not for heavy metal nuclear waste. Highway departments, humane societies, veterinary clinics, are just a few of the animal incineration users. Governments would find these extremely valuable for transportation departments, road kill, drug incineration at site of intervention, etc. Our incinerators are useful for H5N1 avian flu disposal, SARS disposal, bird flu carcass disposal, and similar disposal problems. Full information on this product line is found at:
