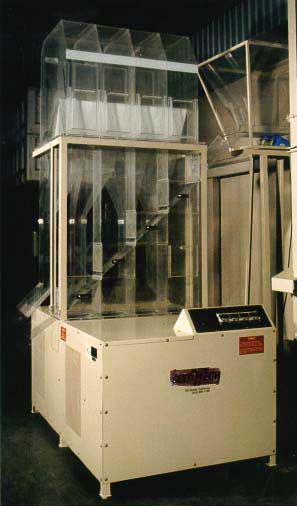

Multiple Air Chamber System' Seed Separator Seed Processing Equipment STS-MACS Seed Separator ‘Multiple Air Chamber System’ A technological breakthrough in precision seed upgrading! The STS-MACS is so sensitive in its calibration that it can separate seed based on the moisture and tissue development of the seed and thus dramatically improves seed germination. The STS-MACS is a multiple air chamber system which stratifies columns of air and uses this air to separate products. Separation is accomplished by using a vibratory feeder unit to feed the product into multiple enclosed chambers. Air flow is calibrated by digitized LED variable frequency computers. The user has direct control of air flow levels which allow for precise air adjustments in each column,_ thus, the desired level of product separation is obtained. Seed Separator Features Programmable LED key pad operation or standard (air flow) calibration operation Removable screen chamber cartridges for easy clean out and versatility of screen size in relation to product size Virtually hands free operation Quiet operation Little to no mechanical maintenance required Metal or optional clear acrylic construction (center body only) Multiple chamber design for a greater degree of product separation Seed Separator Uses General Cleaning: The STS-MACS can widely be ]used to clean seed by removing large particle/granular debris, chaff, inert material, pieces of broken seeds and other light unwanted materials. Close Grading: The STS-MACS can be used to “grade” seed based on density or volume weight (e.g., removal of light seed or insect damaged seed). Stoning: The STS-MACS is effective for removing heavy debris (e.g., dirt clods, rocks, glass, sticks) from batches. Precision Upgrading: Detailed upgrading utilizing a highly sophisticated, yet user-friendly, variable frequency computer which controls air flow in each chamber. This effectively separates partially filled and immature seeds which improves the quality of the lot and, therefore, enhances seed viability and germination. Proven Seed Separation The STS-MACS separator has been proven to be highly effective in upgrading product and has accomplished what other processing machines do collectively using only a single-step process. The STS-MACS has been proven to recover seed losses from other processing machines. As much as 25-50% more seed yield was gained from the recovery with the same or higher germination. STS-MACS Models STS-MINI MACS 2C (LAB) 1/230V, 50/60Hz $18,100 – $20,000STS-MINI MACS 3C (LAB) 3/230V, 50/60Hz $21,900 – $24,200This separator is a very small miniature size version of the MACS 104 Model. ~ 15-75 lbs. Per hour (Depending on species). STS-MACS 104 3/230V, 50/60 Hz $27,600 – $30,500 This separator model comes complete with four programmable key pad operation. This system comes with a clear body construction with 4 multiple separation chambers, Feeder Stand, Feeder, a complete turn key package. 3/230V, 50/60 Hz system. This model processes ~ 80-250 per hour depending on seed density. STS-MACS 503 3/230V, 50/60 Hz This separator model comes complete with three programmable key pad operation. This system comes with clear body construction with 3 multiple separation chambers, Feeder Stand, Feeder, a complete turn key package, 230V, 3 phase, 60 Hz system. Feed Rate ~ 125-500 lbs. Per hour. STS MACS 802 3/230V, 50/60 Hz This separator model comes complete with two programmable key pad operation. This system comes with clear body construction with 2 multiple separation chambers, Feeder stand, Feeder, a complete turn key package. 230V, 3 phase, 60 Hz system. Feed Rate ~ 200-1000 lbs depending on seed density. Smaller and larger scale models available – built to customer specifications. These specifications are general and are subject to change without notice. Seed Separator Options: Fill hopper, feeder trough, vibratory feeder and stand Continuous flow discharge chutes (flow through) Small lot batch collection PRICES EXCLUDE CRATING, SHIPPING & HANDLING.Approximate price depends upon accessories, style or type, voltage and seed specie. Prices vary depending upon multiple options. On large units, request for prices.
