Euroemme Fans:
Air Blowers EDC18 – EDC24
USGR
offers a wide variety of exhaust fans for many industries,
engineered, designed and priced to meet all climates of the
world.

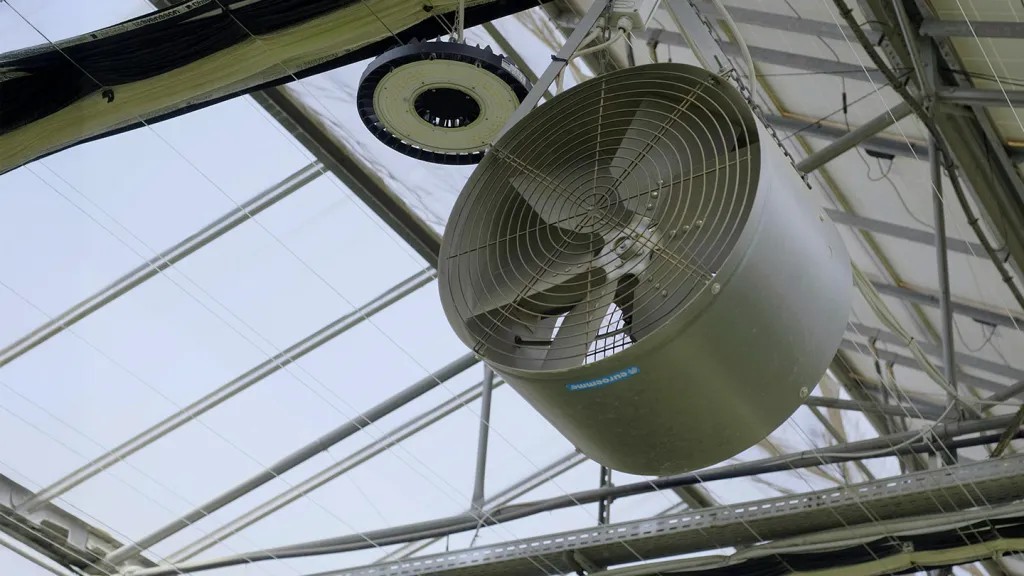

Air blowers are developed to break up stratified heat, humidity and stagy ant air. The unique propeller design is self-cleaning and, together with air flow rectifiers, allows the highest efficiency to be reached.
The round housing and air flow rectifiers are made of a strong galvanised sheet-steel. The 6-blade propeller is statically and dynamic balanced for low noise and low vibration.
TO improve aerodynamic efficiency. the air blower has been developed in Munters euroemme’s R&D lab. The test chamber has been built according to ANSI / AMCA 2 10-85 Figure 15 specifications. Construction details and airtightness have been verified by personnel of the BESS Lab at the Agricultural Engineering Department, University- of Illinois – USA.
Equipment
Equipment- Air blower housing is made of strong, pre-coated, galvanised
sheet-steel. - Each motor is individually tested for 100% quality control.
- Propeller is statically and dynamically balanced.
- Special hooks on housing permit the blower to be easily
hung. - The smooth air recirculation obtained by using air blowers
helps to prevent condensation. - Air recirculation helps to prevent crops disease and
helps crops transpiration. - Every blower is individually checked for quality.
Order Information
EDC18-X-X-X e.g., EDC18-b-2-wm
EDC24-X-X-X e.g., EDC24-b-2-wm
- b : Code for electric motor according
to above table. - 2 : Code for the type of propeller blades.
- Galvanised propeller blades.
- Precoated propeller blades.
- Stainless steel propeller blades.
- wp-wm : Options codes
- wm: Fan delivered with pyramidal
shape mesh for CE protection on shutter side. - nm: Fan delivered without pyramidal
shape mesh for CE protection on shutter side (standard)
- wm: Fan delivered with pyramidal
Motor Specifications
| ED 24 Code |
Nominal power | Type phases |
Speed | Frequency [hz] |
Voltage [V] |
Current [A] |
rpm | Poles | |
| [w] | [hp] | ||||||||
| a | 240 | 0.33 | 3 | single | 50 | 230 / 400 | 1.7 / 1 | 1,400 | 4 |
| b | 240 | 0.33 | 3 | single | 60 | 230 / 400 | 1.7 / 1 | 1,700 | 4 |
| c | 240 | 0.33 | 1 | single | 50 | 230 – 240 | 2.5 | 1,400 | 4 |
| d | 240 | 0.33 | 1 | single | 50 | 220 | 2.5 | 1,400 | 4 |
| e | 110 | 0.15 | 3 | single | 50 | 230 / 400 | 0.86 / 0.5 | 1,100 | 6 |
| f | 110 | 0.15 | 3 | single | 60 | 230 / 400 | 0.86 / 0.5 | 1,100 | 6 |
| ED 24 Code |
Nominal power | Type phases |
Speed | Frequency [hz] |
Voltage [V] |
Current [A] |
rpm | Poles | |
| [w] | [hp] | ||||||||
| a | 370 | 0.5 | 3 | multi* | 50 | 230 / 400 | 2.5 / 1.5 | 900 | 6 |
| b | 370 | 0.5 | 3 | multi* | 60 | 230 / 400 | 2.5 / 1.5 | 1,100 | 6 |
| c | 370 | 0.5 | 1 | multi* | 50 | 220 | 3.8 | 900 | 6 |
| d | 370 | 0.5 | 1 | multi* | 50 | 240 | 3.7 | 900 | 6 |
| e | 370 | 0.5 | 1 | multi* | 60 | 220 | 4.5 | 1,100 | 6 |
| * Multi speed motors must be regulated with auto-transformer which is not supplied. |
|||||||||
Technical Specifications
| EDC18 6 poles | EDC18 4 poles |
EDC24 | ||
| Weight of fully equipped fan1 | [kg] | 15 | 16 | 26 |
| Nominal propeller speed | [rmp] | 900 / 1,100 | 1,400 / 1,700 | 900 / 1,100 |
| Airflow at 0 Pa1 | [m3/h] [cfm] | 2,600 [1,530] | 3,950 [2,325] | 7,400 [4,350] |
| Specific performance at 0 Pa1 | [m3/wh] [cfm/w] | 16.1 [9.5] | 9.2 [5.4] | 11.2 [6.6] |
| Propeller diameter | [mm] [inch] | 450 [18] | 450 [18] | 600 [24] |
| Number of blades | 6 | 6 | 6 | |
| IEC protective class of electric motor | IP55 | IP55 | IP55 | |
| Electric motor winding insulation grade | B | B | B | |
| 1 All values refer to 3 phases 50 Hz single speed motor. N.B Airflow data are measured at standard condition (20 °C, 1013 hPa). |
||||
EDC18
– EDC24 is developed and produced by Munters euroemme S.p.A.,
Italy.
