Exhaust Fan ED 24

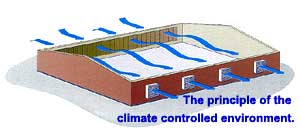

ED24 is the ideal exhaust fan whenever high airflow capacity is required. The unique propeller design is self – cleaning and allows the highest efficiency to be reached.
The square fan housing and air conveyor (venturi) are made of a strong galvanized sheet-steel. The 6-blade propeller is statically and dynamic balanced for low noise and low vibration. The propeller is available in stainless steel, galvanized steel and pre-coated and galvanized steel.
To improve aerodynamic efficiency, the fan has been developed in Munters/Euroemme’s R&D lab. The test chamber has been built according to ANSI / AMCA 210-85 Figure 15 specifications. Construction details and airtightness have been verified by personnel of the BESS Lab at the Agricultural Engineering Department, University of Illinois – USA.
Propeller and Shutter
The propeller is directly coupled with motor. The shutter is made
of galvanized steel for all models, which is stronger than aluminum and plastic. The fan shutter is tightly closed when the fan is not working preventing any air leakage through the fan.
The patented centrifugal system hinders shutter from being closed by air pressure, keeping the efficiency of the fan at a peak at all times by keeping the shutter fully and firmly opened. The shutter does not have to be cleaned regularly as dust does not affect its opening and closing movement. All the plastic parts are made of acetalic plastic with UV protection.
Equipment
- Fan housing and venturi made of corrosion resistant material.
- Shutters are made of pressed galvanized steel in order to assure highest strength
- Each motor is individually tested for 100% quality control
- Propeller is statically and dynamically balanced
- Shutter bearings are maintenance free
- Patented centrifugal system permits a fully and firm opening of the shutter
- Shutter is opened by rotating weights placed over centrifugal system arms
- Shutter opening is not affected by the weight of dust deposited on shutter blades
- A powerful couple of springs keep the shutters firmly closed when the fan is not operating
- Every fan is individually checked for quality
Curve refers to ED24 3Ph 50 Hz multi speed motor.
Fan lested with shutter and wire mesh.
Order Information
ED24-X-X-X e.g., ED24-b-2-wp-wm
- b : Code for electric motor according to above table.
- 2 : Code for the type of propeller blades.
- Galvanized propeller blades.
- Precoated propeller blades.
- Stainless steel propeller blades.
- wp-wm : Options codes
- wm: Fan delivered with pyramidal shape mesh for CE protection on shutter side.
- nm: Fan delivered without pyramidal shape mesh for CE protection on shutter side (standard)
Motor Specifications
| ED 24 Code |
Nominal power | Type phases |
Speed | Frequency[hz] | Voltage[V] | Current[A] | rpm | |
| [w] | [hp] | |||||||
| a | 370 | 0.5 | 1 | multi* | 50 | 220 | 3.8 | 900 |
| b | 370 | 0.5 | 1 | multi* | 50 | 240 | 3.7 | 900 |
| c | 370 | 0.5 | 1 | multi* | 60 | 220 | 4.5 | 1,100 |
| d | 370 | 0.5 | 3 | multi* | 50 | 230 / 400 | 2.5 / 1.5 | 900 |
| e | 370 | 0.5 | 3 | multi* | 60 | 230 / 400 | 2.5 / 1.5 | 1,100 |
| * Multi speed motors must be regulated with auto-transformer which is not supplied. | ||||||||
Technical Specifications
| 05 hp | ||
| Weight of fully equipped fan1 | [kg] | 44 |
| Nominal propeller speed | [rmp] | 900 / 1,100 |
| Airflow at 0 Pa1 | [m3/h] [cfm] | 10,600 m3/h [6,240] |
| Airflow at 20 Pa1 | [m3/h] [cfm] | 9,780 m3/h [5,750] |
| Specific performance at 0 Pa1 | [m3/wh] [cfm/w] | 12.5 m3/h/W [7.3] |
| Propeller diameter | [mm] [inch] | 600 mm [24] |
| Number of blades | 6 | |
| Number of shutter blades | 5 | |
| IEC protective class of electric motor | IP55 | |
| Electric motor winding insulation grade | B | |
| 1 All values refer to 3 phases 50 Hz motor. N.B Airflow data are measured at standard condition (20 °C, 1013 hPa). |
||
ED 24 is developed and produced by Munters /Euroemme S.p.A., Italy.
