RATIO:FEEDER® INJECTORS
ANDY C., ANDY JR. SERIES

Anderson Injectors aren’t just for large facilities! We bring the same great quality and workmanship to these smaller, inexpensive, entry-level injectors as well. Single solution only. Our Andy and Andy Jr. injectors are perfect for the grower who needs a versatile, long lasting injector that can handle their watering needs, all at an affordable price.

Great for entry-level growing!

Andy Series (3/4-50 GPM) Andy Jr. Series (1/4-20 GPM)
Model DD100W 1:100 Model DB100W 1:100
Model DD200W 1:200 Model DB200W 1:200
Model DD400W 1:400 Model DB400W 1:400
Model DD1000W 1:1000 Model DB1000W 1:1000
Model DD1200W 1:1200 Model DB1200W 1:1200

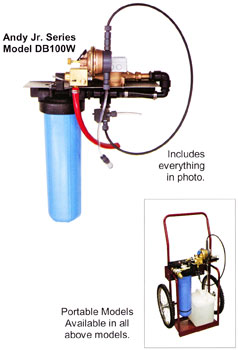

Anderson Andy C, Andy Jr examples of models

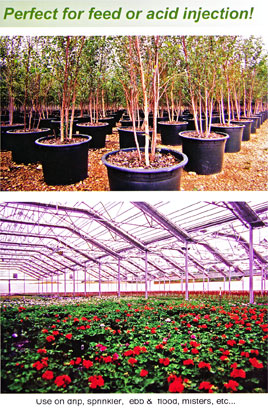

Anderson RATIO:FEEDER Andy C, Andy Jr. series
Anderson J-Series compressed Air

Try Air Power !

Powering Ratio:Feeder® Injectors with compressed air offers many benefits which include no minimum water line pressure, protection from water hammer and elimination of waste water. These new kits include everything you need to convert any J Series or D Series Ratio:Feeder® Injector to use compressed air. The air and water kit allows you to easily switch between either.

Easily convert your existing systems. Order with a new manifold and have the kit factory installed. Pre-assembled for easy installation

Anderson air upgrade

SPECIFICATIONS

Water Meter Size: 3/4-50 GPM, 1-1/4″ (DD); 1/4-20 GPM, 1″ (DB)

Available Ratios: 1:100, 1:200, 1:400, 1:1000, 1:1200

Power Requirements: 120VAC or 12VDC Water Temp: 33° to 140° F

Operating Pressure: 30-125 PSI (20 PSI minimum available on some models)

Feed Rate Adjustable over 10 to 1 range Feed Rate may be changed while in operation

Liquid End Materials available: Acrylic or PVC head with EPDM, Viton*, or Teflon* diaphragms; Chemical valves are PVC w/ Viton* 0-rings.

*Registered Trademark of Dupont

POWER CONSUMPTION FOR D SERIES (ANDY AND ANDY JR)
MODEL CURRENT WATTAGE
DB100, 1000 338mA 4.06 W
DB200, 400 234mA 2.81 W
DB1200 95mA 1.07 W
DD100, 200, 400, 1000 338mA 4.06 W
DD1200 200mA 2.40 W
Power consumption is an average. Ratings based on a maximum flow rate of unit @ 12.4VDC.



QUICK FACTS FOR D SERIES (ANDY AND ANDY JR)
Andy (DD) models, 3/4 to 50 GPM water flows.
Model Max
Ratio
Min
Size
Pumpe
Size
Gallons
per Stroke

ml/
Stroke

strokes/min
at max flow
DD100 1:100 1:1000 H4-HD 1.06 40 47.3
DD200 1:200 1:2000 H2-HD 1.06 20 47.3
DD400 1:400 1:4000 A10-VCP 1.06 10 47.3
DD1000 1:1000 1:10000 A3-VCP 0.79 3 63.1
DD1200 1:1200 1:12000 P1-BA 3.17 10 15.8

Andy Jr (DB) models, 1/4 to 20 GPM water flows.
Model Max
Ratio
Min
Size
Pumpe
Size
Gallons
per Stroke

ml/
Stroke

strokes/min
at max flow
DB100 1:100 1:1000 P2-HC 0.53 20 37.7
DB200 1:200 1:2000 P1-HC 0.53 10 37.7
DB400 1:400 1:4000 Al O-VCP 1.06 10 18.9
D81000 1:1000 1:10000 A3-VCP 0.79 3 25.3
DB1200 1:1200 1:12000 P1-BA 3.17 10 6.3



Andy (DD-) and Andy Jr. (DB-) Series Wall Mount and Portable Units

Dam & DB T Most Popular Models
Model Water Flow
(GPM)
Max. Feed
Ratio
Pipe Size  Fertilizer  Sanitizer  Chlorine
DD100W 3/4 – 50 1:100 1 1/4″ X
DD200W 3/4 – 50 1:200 1 1/4″ X
DD400W 3/4 – 50 1:400 1 1/4″   X
DD1000W 3/4 – 50 1:1000 1 1/4″   X
DD1200W 3/4 – 50 1:1200 1 1/4″     X

DB100W 1/4 – 20 1:100 1″ X
DB200W 1/4 – 20 1:200 1″ X
DB400W 1/4 – 20 1:400 1″   X
DB1000W 1/4 – 20 1:1000 1″   X
DB1200W 1/4 – 20 1:1200 1″     X
All above models are also available as “portable models”. Simply substitute the letter “P” in place of the “W’ in the model (e.g. DD100P). Each portable model can be powered by 12VDC battery or 12VDC solar power system. All D Series Ratio: Feeder® models ship with a 120VAC power supply.
