Siebring Steam 'N' Air Pasteurization System

Siebring Steam ‘N’ Air
Soil Sterilization Equipment

SG10 STEAM GENERATOR

For Greenhouse batch, potting soil steaming and small quantity application. For large quantities, ground or bed sterilization, see Steam Flo® section. Steam generator SG10 soil sterilizer

The Siebring Steam ‘N’ Air Pasteurization System is a new innovation form a company who leads the way in products that are beneficial to the greenhouse industry.

The Steam ‘N’ Air is basically the combination of three separate portable components, the Steam Generator SG 10, the Aeration Blower AB28, and the optional ‘N’ Dump Aeration Cart. Once attached to each other, they take on the job of pasteurizing porting soil and other materials.

Since these are components, the customer has the option to buy one Steam Generator for one Aeration Blower and Aeration Carts, or whatever combinations are affordable or profitable to the customer’s needs; to the customer may find other uses for the components.

In the pasteurization steam cycle, the SG10 raises the temperature of 2 cu.yds. Of material 150o to 170oF in 1 1/4 hrs. The AB28 Blower assists with enough air flow for 28″ of material when material is placed in an aeration bin or cart. In the cool down cycle, the AB28 Blower may dry the material to the moisture saturation level that existed before the steam cycle.

Steam Generator Features:

Aeration Blower SB28

  • 300 lbs. steam per hour
  • 20 gallon fuel tank
  • 2.75 gallon #2 fuel per hour
  • 200 ft. heating coil
  • 40 PSI – Ultra dry steam
  • Steam separator & steam trap
  • Fuel pressure gauge
  • 120 V. power supply
  • 8″ chimney adapter
  • 12′ electrical cord

Aeration Blower Features:

  • 28″ static pressure, 250 – 400 CFM
  • 3 HP 220 shingle phase motor
  • 40′ power cord
  • 4″ threaded discharge & 8 ‘ hose
  • Quick couple connector to aeration cart
  • Finger guard on intake & discharge
  • Balloon tires & easy move cart
Steam Separator and Tarp

Siebring Tow ‘ N ‘ Dump

Siebring manufactures Tow ‘N’ Dump model options to meet the specific needs of the customer. The Tow ‘N’ Dump Aeration Cart ( pictured here ) has the Tow 'N' Dump cart option of fold down rear gate, tilt box, and hydraulic lift; or fold down sides without hydraulic lift. Either cart has a perforated floor equipped with hookups for soil pasteurization equipment.

The Tow ‘N’ Dump – Dump cart has a fold down rear gate with Flow control wings, tilt box with smooth floor, and hydraulic lift.

Running gear features:

  • Running gear weight tested at 6400 lbs. (dropped 6″ abuse)
  • 18 x 8.5 wheels
  • Wheel spindles w / roller bearings
Tow "n" Dump trailer for SG10, SG12 and SG15

Cart Specifications

  • Cart capacity – 2 cubic yards
  • Aeration cart with 40 % aerator floor – 4′ wide x 8′ long, with 20″ sides
  • Dump cart with smooth dump floor – 4′ wide x 8′ long, with 24″ sides

Cart options:

  • Aeration cart with fold down sides for work bench ( flat filling )
  • Aeration cart with fold down rear gate and battery powered hydraulic lift with safety locks
  • 10 amp – 12 volt battery charger for battery powered hydraulics
  • Aerator and steam fittings for soil pasteurizing aeration carts
  • Canvas cover for aeration carts

SG12 STEAM GENERATOR

SG12 SG12 steam generatorSteam Generator Sprcifications:

  • Fuel is No. 2 diesel
  • Vented 8” chimney connection
  • 120 volt electrical power supply at 20 amps
  • Four minute steam at 45 lbs. (55° water to 280° steam temperature)
  • 20 gallon fuel tank, 2.0 – 2 1/4 gallon per hour usage
  • All fittings and hose required for steam delivery are furnished
  • Water supply – 45 PSI, 3/4” hose and 3 GPM minimum
  • “Clearwave” water conditioning for reduced lime build up
  • Gauges for all adjustable controls and steam temperature monitoring
  • Start up water diverter (manual) in the system
  • One year warranty on all parts (freezing of unit excluded)

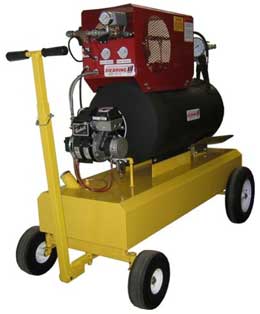

SG15 STEAM GENERATOR

SG15 steam generatorSG15 Steam Generator Sprcifications:

  • Fuel is No. 2 diesel
  • Vented 8” chimney connection
  • 120 volt electrical power supply at 20 amps
  • Four minute steam at 45 lbs. (55° water to 300° steam temperature)
  • 42 gallon fuel tank, 2 1/4 – 2 1/2 gallon per hour usage
  • Highly mobile with pull tongue and auto type steering
  • All fittings and hose required for steam delivery are furnished
  • Water supply – 45 PSI, 3/4” hose and 3 GPM minimum
  • “Clearwave” water conditioning for reduced lime build up
  • Gauges for all adjustable controls and steam temperature monitoring
  • Start up water diverter (manual) in the system
  • One year warranty on all parts (freezing of unit excluded)
